Technical Data:

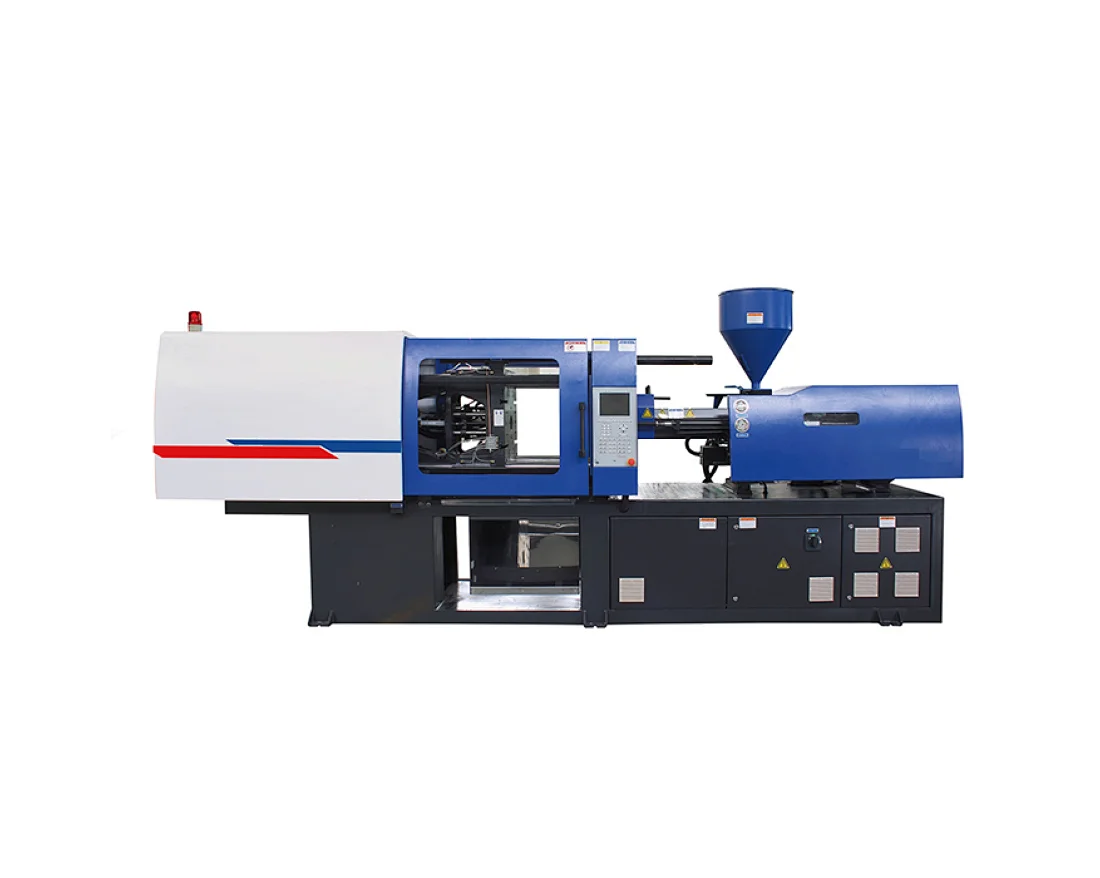

SPECIFICATIONS OF CONVENTIONAL INJECTION MOLDING MACHINE
| 110T | 140T | 170T | 220T | |||||||||||
| A | B | C | A | B | C | A | B | C | A | B | C | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 35 | 38 | 42 | 38 | 42 | 45 | 42 | 45 | 50 | 45 | 50 | 55 |
| SCREW L/D RATIO | L/D | 22 | 20.3 | 18.4 | 24 | 22 | 20.5 | 23.6 | 22 | 19.8 | 24.4 | 22 | 20.0 | |
| SHOT VOLUME(THEORETICAL) | cm3 | 163 | 193.2 | 235 | 226 | 277 | 318 | 311 | 357 | 441 | 397 | 490 | 593 | |
| SHOT WEIGHT(PS) | g | 148 | 176 | 214 | 206 | 252 | 289 | 283 | 325 | 402 | 362 | 446 | 540 | |
| INJECTION PRESSURE | Mpa | 219 | 184 | 152 | 208 | 171 | 149 | 203 | 177 | 143 | 207 | 168 | 138 | |
| INJECTION RATE | g/s | 89 | 104 | 128 | 94 | 115 | 132 | 120 | 138 | 170 | 124 | 154 | 186 | |
| SCREW SPEED | rp.m | 0~210 | 0~185 | 0~180 | 0~180 | |||||||||
| CLAMPING UNIT | CLAMPING FORCE | KN | 1100 | 1400 | 1700 | 2200 | ||||||||
| OPEN STROKE | mm | 350 | 380 | 435 | 475 | |||||||||
| SPACE BETWEEN TIE BARS(WxH) | mm | 370×370 | 420×420 | 470×470 | 520×520 | |||||||||
| MOULD THICKNESS | mm | 150~380 | 160~460 | 180~520 | 200~560 | |||||||||
| EJECTOR FORCE | KN | 38 | 50 | 50 | 70 | |||||||||
| EJECTOR STROKE | mm | 120 | 140 | 140 | 150 | |||||||||
| OTHERS | HEATER POWER | kW | 7.5 | 8 | 12.5 | 14 | ||||||||
| PUMP MOTOR POWER | kW | 13 | 13 | 18.5 | 18.5 | |||||||||
| MAX. PUMP PRESSURE | Mpa | 16 | 16 | 16 | 16 | |||||||||
| MACHINE DIMENSION(LxWxH) | m | 4.3×1.3×2.0 | 4.6×1.5×2.1 | 5.1×1.5×2.2 | 5.7×1.6×2.3 | |||||||||
| MACHINE WEIGHT | t | 3.4 | 4 | 6 | 7 | |||||||||
| OIL BOX CAPACITY | L | 200 | 235 | 260 | 300 | |||||||||
SPECIFICATIONS OF CONVENTIONAL INJECTION MOLDING MACHINE
| 260T | 290T | 350T | 400T | |||||||||||
| A | B | C | A | B | C | A | B | C | h | B | C | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 50 | 55 | 60 | 55 | 60 | 65 | 65 | 70 | 75 | 70 | 75 | 80 |
| SCREW L/D RATIO | L/D | 24.2 | 22 | 20.2 | 24 | 22 | 20.3 | 21.5 | 20 | 18.7 | 21.4 | 20 | 18.8 | |
| SHOT VOLUME(THEORETICAL) | cm3 | 530 | 641 | 763 | 676 | 805 | 945 | 1161 | 1347 | 1548 | 1324 | 1520 | 1729 | |
| SHOT WEIGHT(PS) | g | 482 | 583 | 694 | 615 | 733 | 860 | 1057 | 1226 | 1407 | 1205 | 1383 | 1573 | |
| INJECTION PRESSURE | Mpa | 205 | 169 | 142 | 202.3 | 170 | 144.9 | 195 | 168 | 146 | 199 | 173 | 152 | |
| INJECTION RATE | g/s | 187 | 227 | 270 | 223.5 | 266 | 312.2 | 275 | 319 | 367 | 366 | 395 | 446 | |
| SCREW SPEED | rp.m | 0~180 | 0~180 | 0~170 | 0~160 | |||||||||
| CLAMPING UNIT | CLAMPING FORCE | KN | 2600 | 2900 | 3500 | 4000 | ||||||||
| OPEN STROKE | mm | 540 | 590 | 670 | 710 | |||||||||
| SPACE BETWEEN TIE BARS(WxH) | mm | 570×570 | 620×620 | 710×630 | 760×670 | |||||||||
| MOULD THICKNESS | mm | 220~600 | 200~630 | 260~710 | 250~780 | |||||||||
| EJECTOR FORCE | KN | 70 | 70 | 90 | 110 | |||||||||
| EJECTOR STROKE | mm | 150 | 150 | 200 | 200 | |||||||||
| OTHERS | HEATER POWER | kW | 19 | 19 | 24.5 | 25 | ||||||||
| PUMP MOTOR POWER | kW | 22 | 30 | 37 | 37 | |||||||||
| MAX. PUMP PRESSURE | Mpa | 16 | 16 | 16 | 16 | |||||||||
| MACHINE DIMENSION(LxWxH) | m | 6.2×1.5×2.2 | 6.3×1.7×2.4 | 7.3×1.96×2.41 | 7.3×1.96×2.41 | |||||||||
| MACHINE WEIGHT | t | 8.3 | 9.3 | 12.5 | 14.2 | |||||||||
| OIL BOX CAPACITY | L | 385 | 385 | 700 | 850 | |||||||||
We have more models of this series : 450T, 550T, 650T, 750T, 1000T, 1200T, details specification upon customers'inquiry.
Main Features:

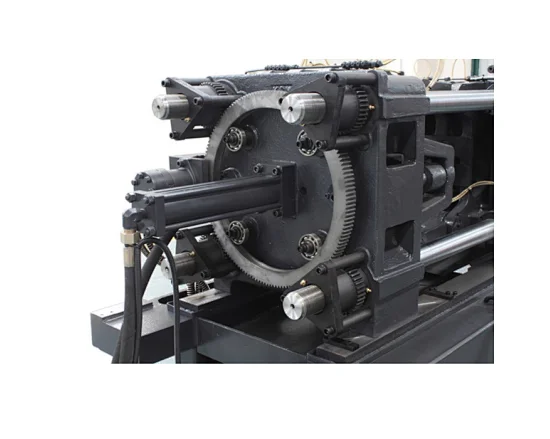

• Adopting integral casting European standard T slot mold plate, loading and unloading molds more easily.
• Enlarged hydraulic system make the injection speed faster.
• Close loop control synchronizes composite action, makes the product shaping cycle time shorter.
• Low-noise while machine running, especially for low speed running.
Electronics:
• LCD color screen for graphic display(with multi-language select).
• European KEBA computer windows control system.
• Reasonable technical data setting.
• Information protection.
• Mold data storage, 500 sets of internal mold memory.
• Electric Motor phase safety protection device.
• Internet connectors available for achieving distance monitor and maintenance diagnosis.
• Mechanical robots and their surrounding components can be centralized into the machine control system.
• Electric Motor safety protection device.
• Abnormal alarm function.
• System hardware testing and molding condition monitoring function.
• Emergency stop safeguard device.
• 3 sets of auxiliary power outlets for auxiliary equipment.
• PID closed circuit control the material temperature.(Precision: ±0.5℃).
Hydraulic Unit:
• PID temperature control have precise temperature of barrel.
• There are several screws and barrels with optimal design, Respectively, nitride, hard chromium plating,
dual-metal, which is suitable for different plastic material’s request
• Two-guided direct line guide bar support, double-balanced rapid injection.
• The high-torque hydraulic motors offer a stable plasticizing capacity, high-precision Linear transducer
device position detection enable accurate measurement.
• Multi-injection speed and pressure and multistage pressure settings, switch from the injection time, location,
pressure control to ensure the quality of molding.
• Multistage back-pressure and pre-injection speed computer-controlled, screw with the features of
pre-injection anti-flow and clean material automatic.
• Prevent cold material starting function to ensure that the screw, barrel will not to be damaged.
Hydraulic Unit:

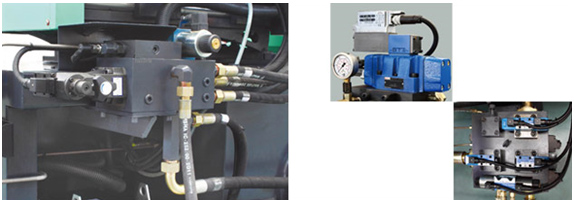

• The manual plug valve hydraulic system make the machine having quick and smooth motion response.
• Pressure and flow double proportional valve control.
• High-performance imported hydraulic unit with optimizing allocation.
• The oil tank has a big opening hole so can be cleaned easily.
Standard Accessory:
• Anti-vobrating pad.
• Spare parts kit.
• Tool box.
• Lubrication oil.
