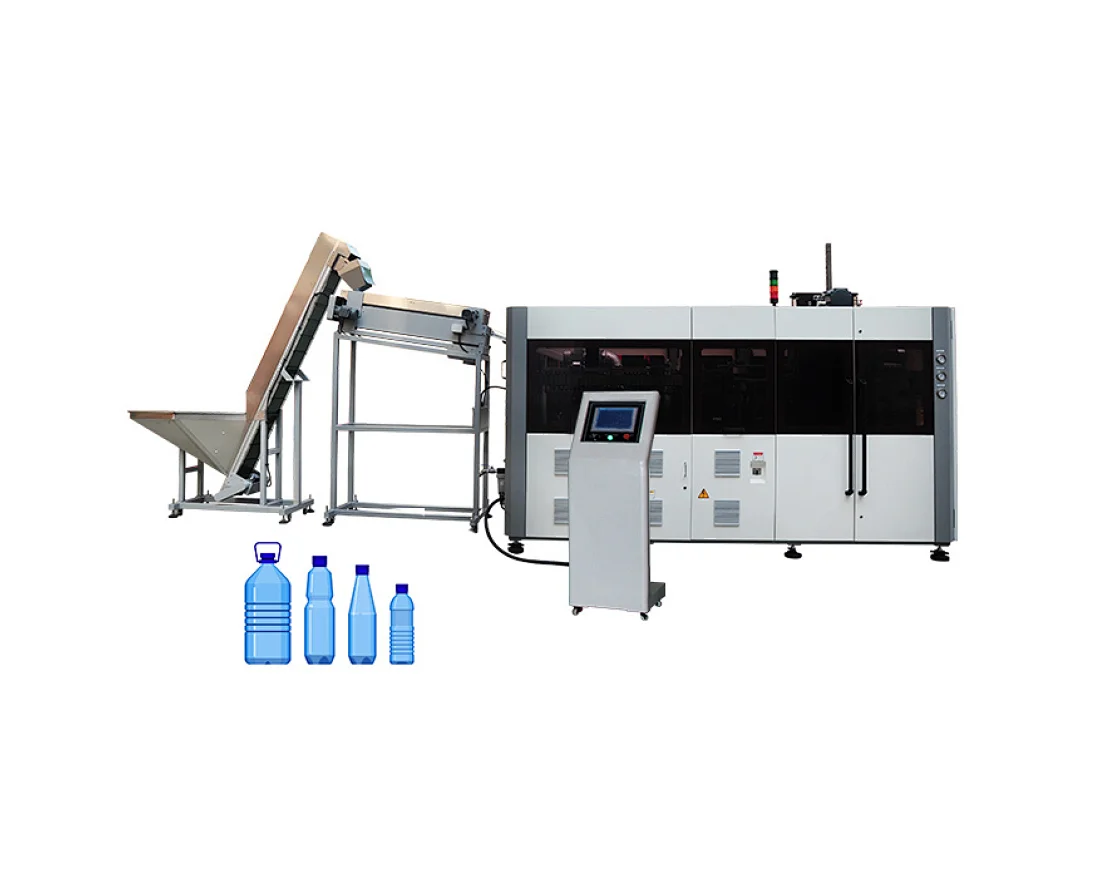

New technology linear blow molding machines
CP, TP series (up to 9-cavity, output 18,000bph)

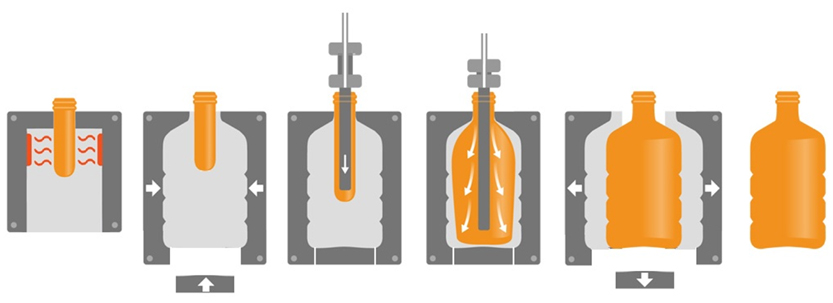

Blow Moulding Process

Machine Advantages

1.Electric power saving over 50%, benefit from minimum preform heating pitch;
2. Structures with optimized design enable a higher per cavity output, with stable running;
3. Comparing with standard normal machine, few air cylinders in use, less maintenance cost
4. Equipped with servo motors, precise and faster motion;

5. Advanced clamping mold linkage structure, powerful, compact size and less energy consumption. Machine is at less installation area.

Main Features

1. Preform Feeding
1)Rotary dial plate design enable continuous and high speed preform feeding;
2)No pneumatic claws, more reliable and less maintenance;
3)Multiple protection device for precise preform feeding.

2. Transfer and heating
1)Horizontal rotation transfer style, no preform turnover, simple structure;
2)Compact preform heating pitch for less energy consumption;
3)Cooling channel applied in neck area to guarantee no deform of preform neck;
4)Optimized ventilation to ensure heating consistency;
5)Equipped with function of preform temperature detection.

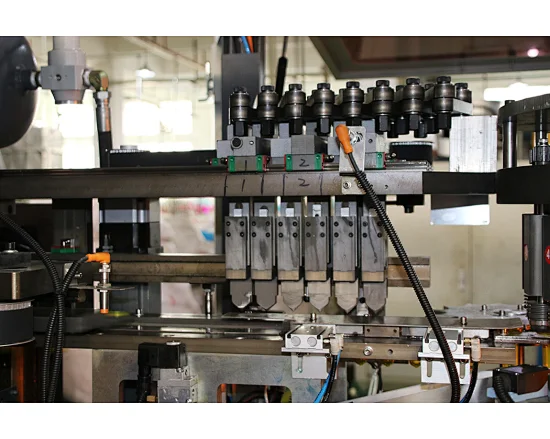

3. Transfer and bottle out
1)Servo motor driving for preform transfer and location with quick and precise action;  2)No pneumatic clampers were used for bottle taking out, less maintenance in future, less running cost.

4. Clamping and stretching blow molding
1)Servo motor clamping system with synchronized base blow mould for fast response operation;  2)Precision electromagnetic blowing valve group for fast and high productivity;
3)No link rod,no toggle structure, simple and reliable clamping system. Less maintenance required

5. Controlling

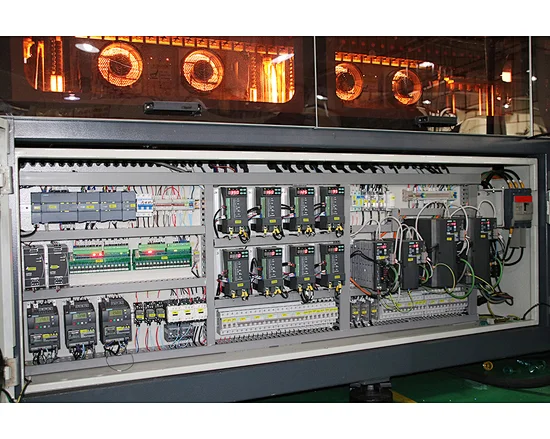

Motion PLC controlling system with 9 inch touch screen for simple and stable operation.

6. Others
1)Simplified construction, quick mould change design;  2)Low power and air consumption, longer life-span and lower wear, more clean structure.
3)Be able to be connected directly to air conveyor to bottling production line easily.

Machine Details

High Efficient Heating System
Design: Minimized heating pitch
Advantage:High heating efficiency, energy saving.
High Pressure Blowing Valve group
Brand: SEITZ, Original:Swizerland
Functions including:
2.High pressure blowing;
3.High Pressure recycle (CP series) ;
4.Blowing exhaust
Quick Mold Changing Device
Design: Standard with same mold
height and thickness.
Advantage: No mold adjustment
required, fast changing

Technical Data

Theoretical production capacity1BPH120001400016000
Number of mold cavity678
CONTAINERMax.Bottle VolumeL1.51.51.5
Max. Neck Diametermm303030
Max.bottle Diametermm959595
Max. bottle heightmm350350350
MOLDINGSpindle Chain Pitchmm38.138.138.1
Cavity Pitchmm105105105
PowerMax.heating powerKW408080
Servo motor powerKW17.51921
Total PowerKW63104106
Actual power consumption*KW202325
Voltage/FrequencyV/HZ380/220V±10% 50/60HZ
AIR SYSTEMBlowing pressurebar353535
High Pressure Consuming2L/min550065008000
MOLD COOLING WATEROperating PressureBar3-53-53-5
Temperature Range10-1210-1210-12
Flow RateL/min505050
Cooling capacityHP555
HEATER COOLING WATEROperating Pressurebar3-53-53-5
Temperature Range10-1210-1210-12
Flow RateL/min505050
Cooling capacityHP555

1. The theoretical Max. capacity and the Actual power consumption  depend on bottle size, shape and bottle weight.
2. High pressure air consuming depends on bottle size and operating conditions.

3. Actual power consumption varies as per preform and bottle sizes.
4. Specifications will be changed when the machine is improved without prior notice.

Main Components

Brand: Siemens
Brand: Siemens
Servo motor and driver
Brand: Siemens


Touching screen
Blowing valve group
Brand:SEITZ, Swiss
Air cylinder
Brand: Festo
Filter, reducing valve
Brand: Festo

Blow Mould



Cooperative Suppliers


Auxiliary Equipments

Air CompressorAir TankAir Treatment Equipment
       (Dry Chiller And Filters)
Blow MouldAir Cooled Water Chiller
