Description

Technical Data:

SPECIFICATIONS OF CONVENTIONAL INJECTION MOLDING MACHINE
			110T			140T			170T			220T			260T			290T			350T
			A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	35	38	42	38	42	45	42	45	50	45	50	55	50	55	60	55	60	65	65	70	75
	SCREW L/D RATIO	L/D	22	20.3	18.4	24	22	20.5	23.6	22	19.8	24.4	22	20.0	24.2	22	20.2	24	22	20.3	21.5	20	18.7
	SHOT VOLUME(THEORETICAL)	cm3	163	193.2	235	226	277	318	311	357	441	397	490	593	530	641	763	676	805	945	1161	1347	1548
	SHOT WEIGHT(PS)	g	148	176	214	206	252	289	283	325	402	362	446	540	482	583	694	615	733	860	1057	1226	1407
	INJECTION PRESSURE	Mpa	219	184	152	208	171	149	203	177	143	207	168	138	205	169	142	202.3	170	144.9	195	168	146
	INJECTION RATE	g/s	89	104	128	94	115	132	120	138	170	124	154	186	187	227	270	223.5	266	312.2	275	319	367
	SCREW SPEED	rp.m	0~210			0~185			0~180			0~180			0~180			0~180			0~170

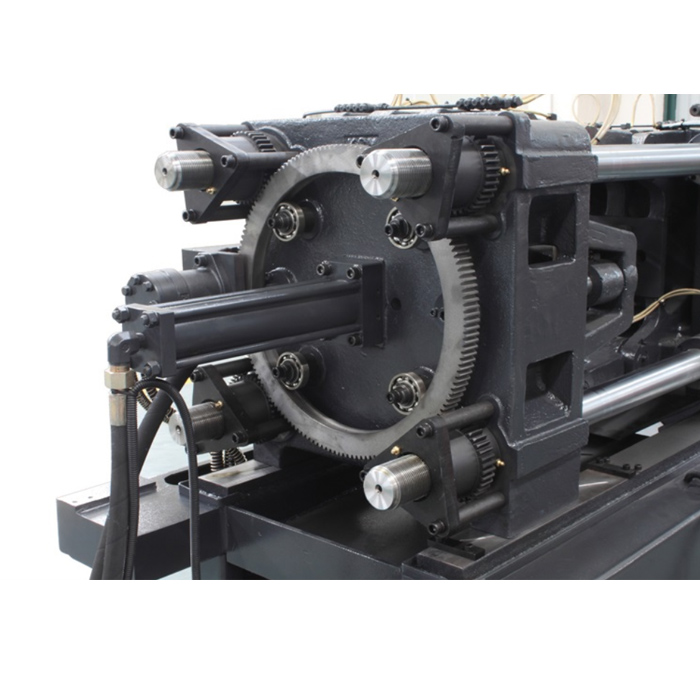

CLAMPING UNIT	CLAMPING FORCE	KN	1100			1400			1700			2200			2600			2900			3500
	OPEN STROKE	mm	350			380			435			475			540			590			670
	SPACE BETWEEN TIE BARS(WxH)	mm	370×370			420×420			470×470			520×520			570×570			620×620			710×630
	MOULD THICKNESS	mm	150~380			160~460			180~520			200~560			220~600			200~630			260~710
	EJECTOR FORCE	KN	38			50			50			70			70			70			90
	EJECTOR STROKE	mm	120			140			140			150			150			150			200
OTHERS	HEATER POWER	kW	7.5			8			12.5			14			19			19			24.5
	PUMP MOTOR POWER	kW	13			13			18.5			18.5			22			30			37
	MAX. PUMP PRESSURE	Mpa	16			16			16			16			16			16			16
	MACHINE DIMENSION(LxWxH)	m	4.3×1.3×2.0			4.6×1.5×2.1			5.1×1.5×2.2			5.7×1.6×2.3			6.2×1.5×2.2			6.3×1.7×2.4			7.3×1.96×2.41
	MACHINE WEIGHT	t	3.4			4			6			7			8.3			9.3			12.5
	OIL BOX CAPACITY	L	200			235			260			300			385			385			700

We have more models of this series: 400T, 450T, 550T, 650T, 750T, 1000T, 1200T, details specification upon customers'inquiry.

Main Features:
• Adopting integral casting European standard T slot mold plate, loading and unloading molds more easily.
• Enlarged hydraulic system make the injection speed faster.
• Close loop control synchronizes composite action, makes the product shaping cycle time shorter.
• Low-noise while machine running, especially for low speed running.

Electronics:
• LCD color screen for graphic display(with multi-language select).
• European KEBA computer windows control system.
• Reasonable technical data setting.
• Information protection.
• Mold data storage, 500 sets of internal mold memory.
• Electric Motor phase safety protection device.
• Internet connectors available for achieving distance monitor and maintenance diagnosis.
• Mechanical robots and their surrounding components can be centralized into the machine control system.
• Electric Motor safety protection device.
• Abnormal alarm function.
• System hardware testing and molding condition monitoring function.
• Emergency stop safeguard device.
• 3 sets of auxiliary power outlets for auxiliary equipment.
• PID closed circuit control the material temperature.(Precision: ±0.5℃).

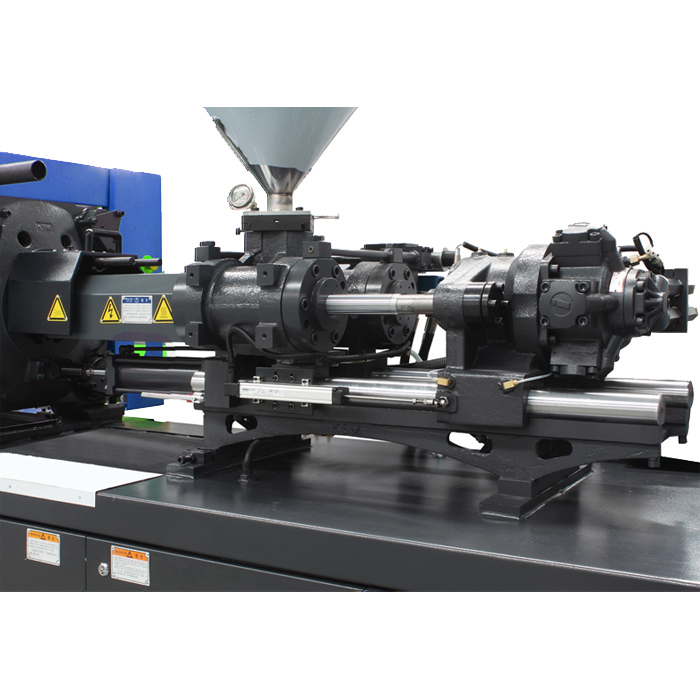

Hydraulic Unit:

• PID temperature control have precise temperature of barrel.
• There are several screws and barrels with optimal design, Respectively, nitride, hard chromium plating,
dual-metal, which is suitable for different plastic material’s request
• Two-guided direct line guide bar support, double-balanced rapid injection.
• The high-torque hydraulic motors offer a stable plasticizing capacity, high-precision Linear transducer
device position detection enable accurate measurement.
• Multi-injection speed and pressure and multistage pressure settings, switch from the injection time, location,
pressure control to ensure the quality of molding.
• Multistage back-pressure and pre-injection speed computer-controlled, screw with the features of
pre-injection anti-flow and clean material automatic.
• Prevent cold material starting function to ensure that the screw, barrel will not to be damaged.

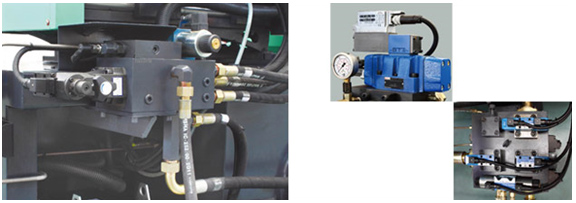

Hydraulic Unit:
• The manual plug valve hydraulic system make the machine having quick and smooth motion response.
• Pressure and flow double proportional valve control.
• High-performance imported hydraulic unit with optimizing allocation.
• The oil tank has a big opening hole so can be cleaned easily.

Standard Accessory:
• Anti-vobrating pad.
• Spare parts kit.
• Tool box.
• Lubrication oil.
