Servo driven pitch change linear blowing machines MAX series

Video:

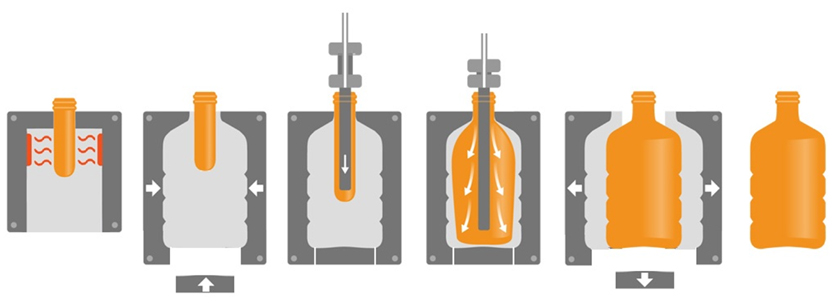

Blow Moulding Process


Machine Advantages
1. Benefited from small preform heating pitch of 38mm, power saving over 50%.

2. Comparing with regular blowing machine, servo motors used for all main movements instead of air cylinders, more output and less maintenance.
3. High output of single cavity. Stable running 2,200 to 2,400bph per cavity.

4. Air recovery function, low pressure air source may not be required.

5. Compact design, machine is with less occupying area compared to other machines.

6. Advanced pitch changing technology.

7. Able to connect with air conveyor and filling line directly, and with function of preform feeding stop while bottle jam on air conveyor line.

Main Features

1. Preform feeding

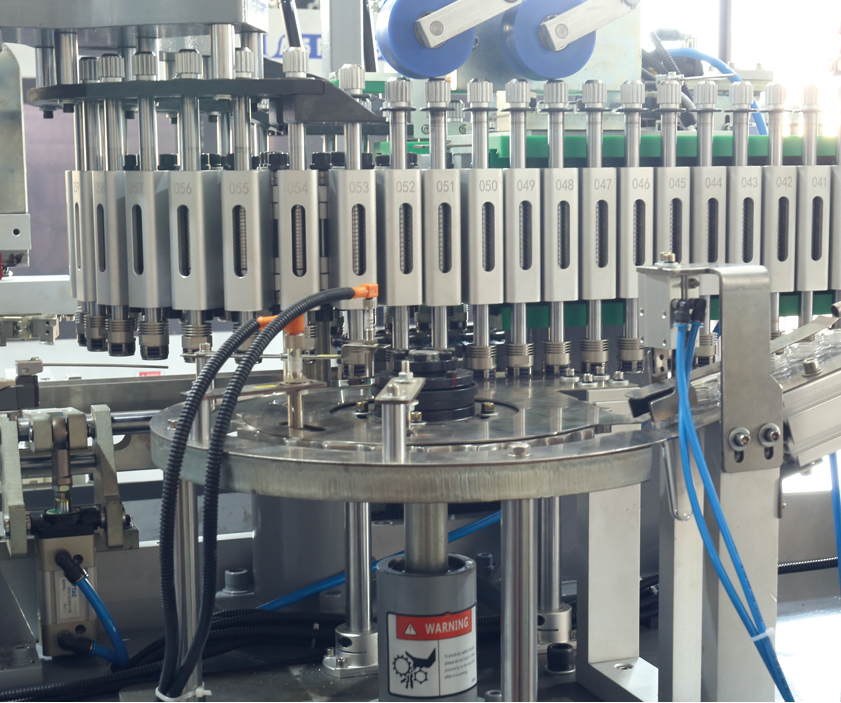

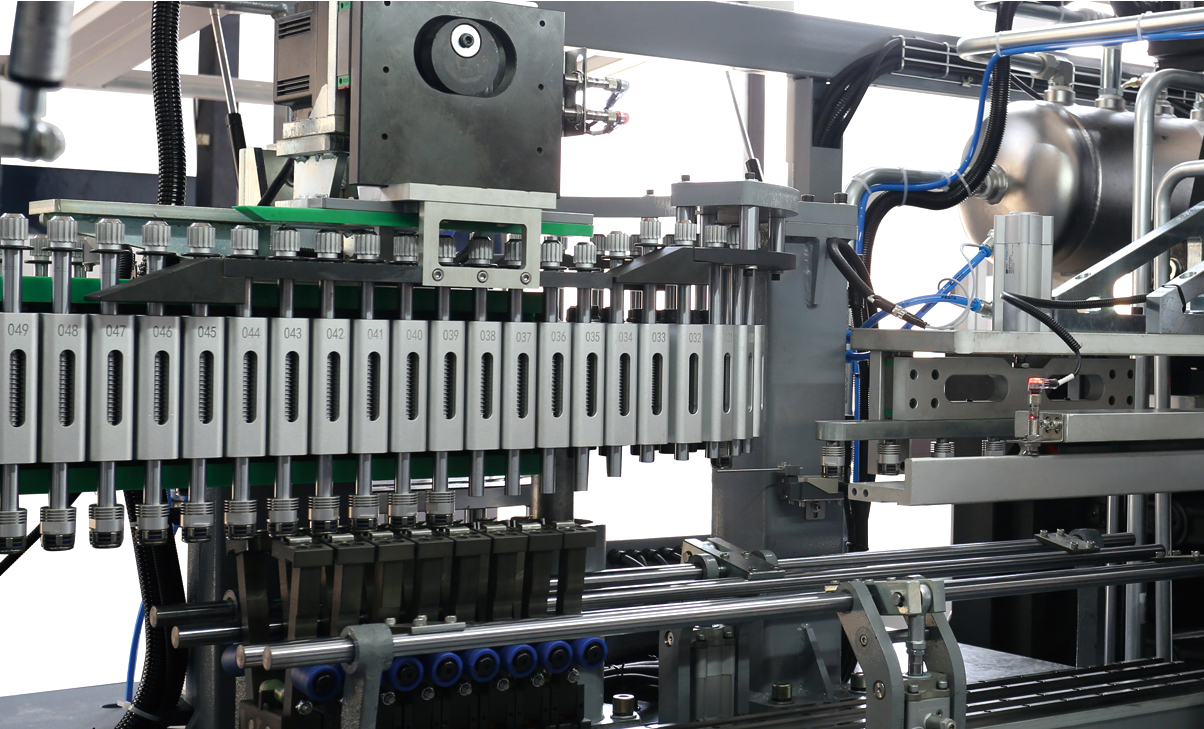

1）Rotary dial plate design enable continuous and high speed preform feeding；
2）No pneumatic clips, more reliable and less maintenance；

3）Multiple protection device for precise preform feeding;
4）Patented preform inserting structure holder enable the realization of minimized heating pitch.

2. Transmission and heating

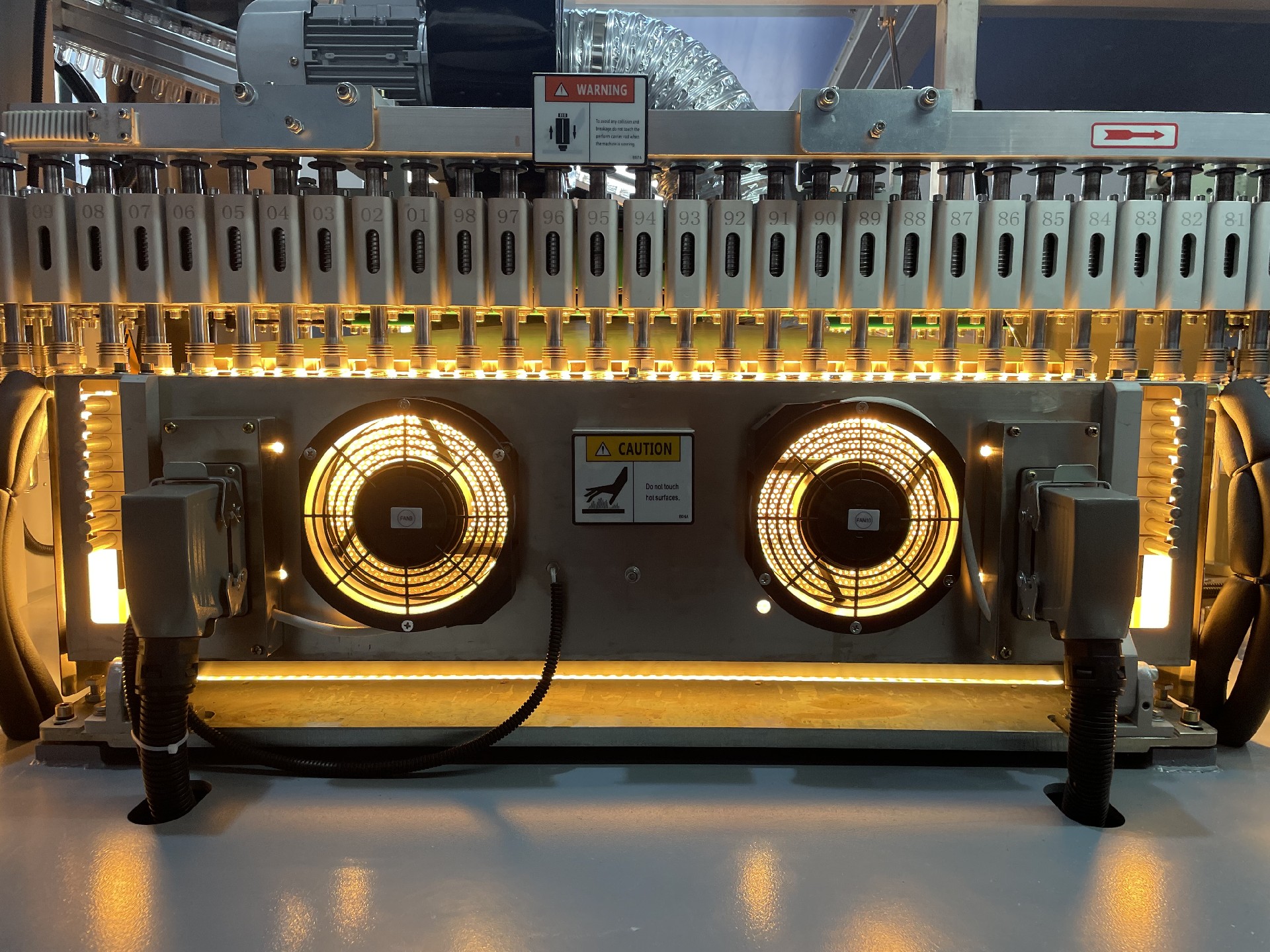

1）Horizontal rotation transmission by servo motor, no preform turnover, simple structure；
2）Minimized preform heating pitch for less energy consumption；

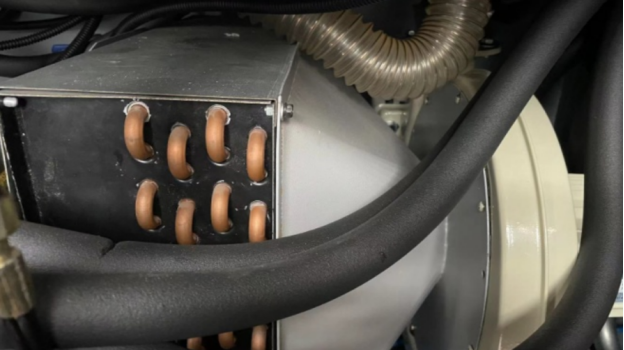

3）Cooling channel applied in neck area to guarantee no deform of preform neck；
4）Optimized ventilation to ensure heating consistency；
5）Equipped with function of preform temperature detection.

3. Transfer and bottle out

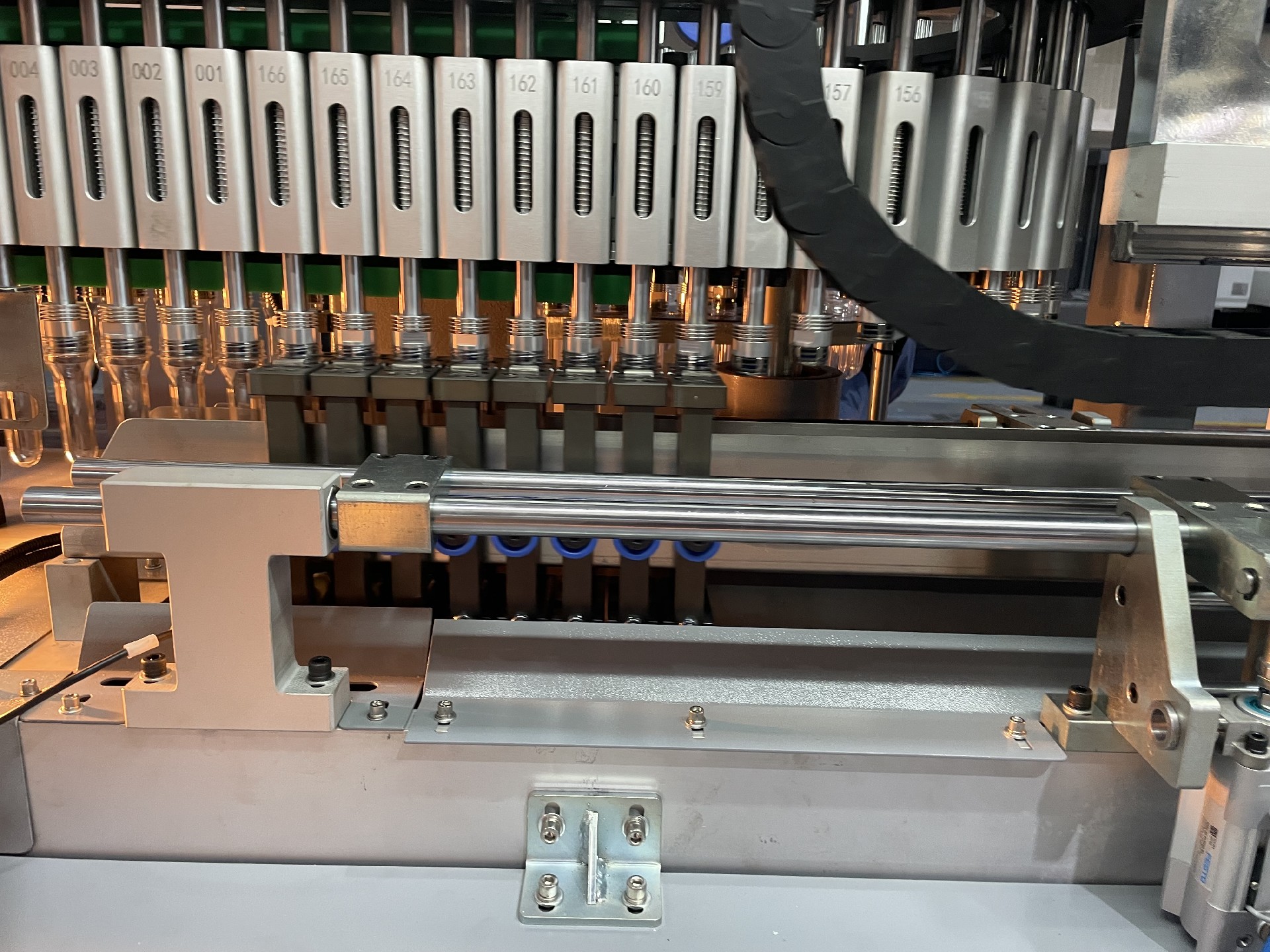

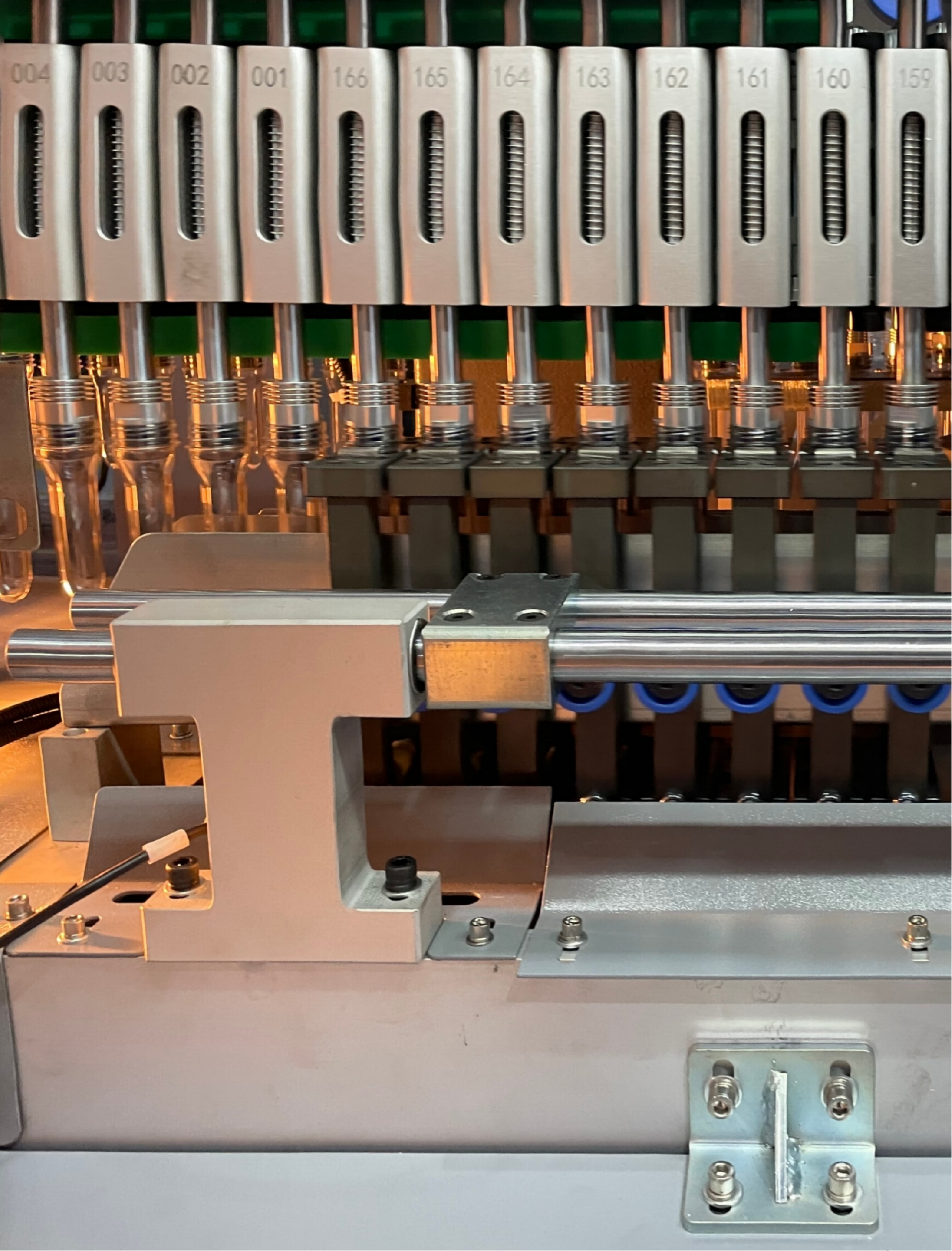

1）Servo motor driving for preform transfer and location with quick and precise action；
2）No pneumatic clampers were used for bottle taking out, less maintenance in future, less running cost.

4. Clamping and stretching blow molding

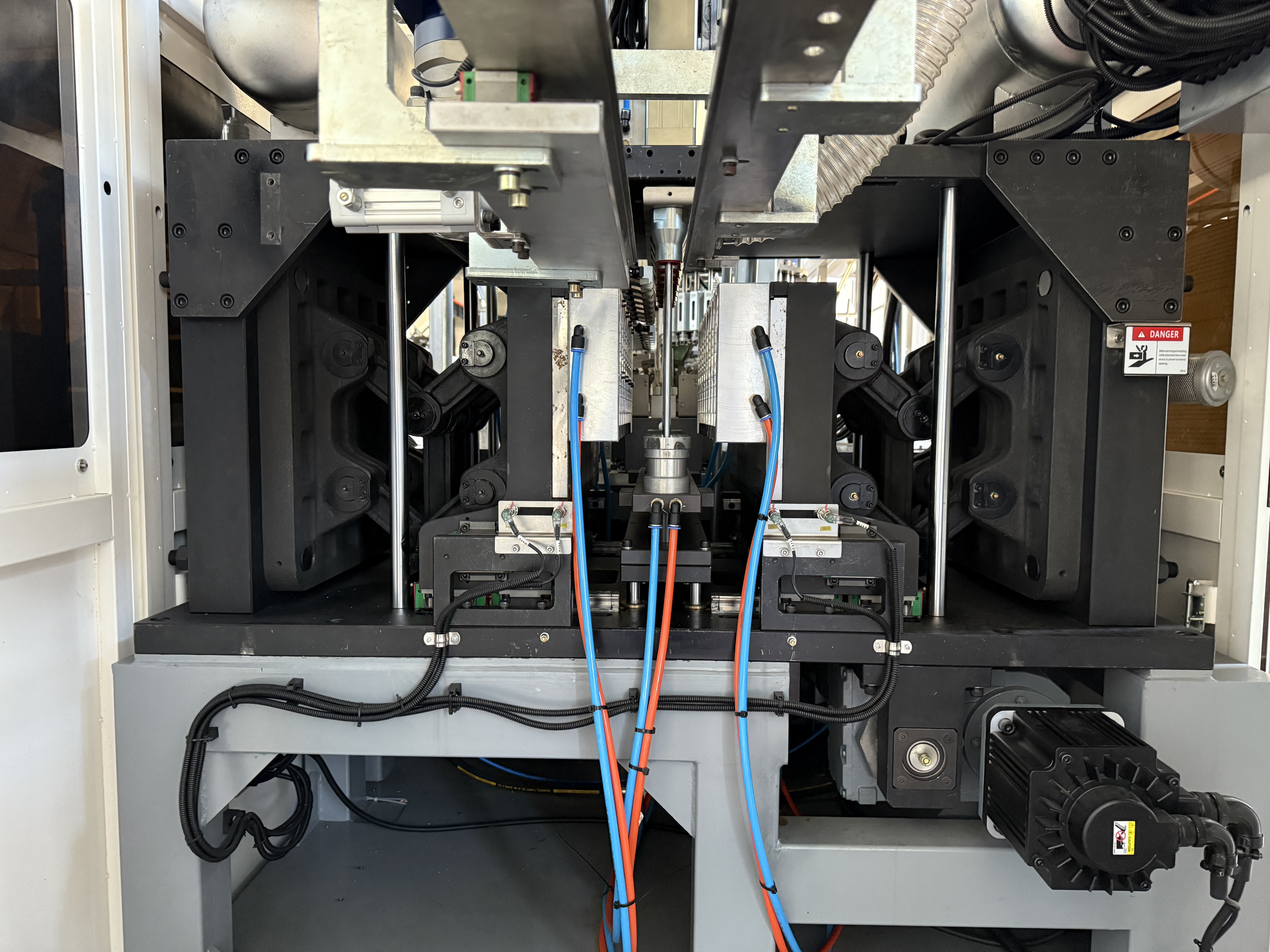

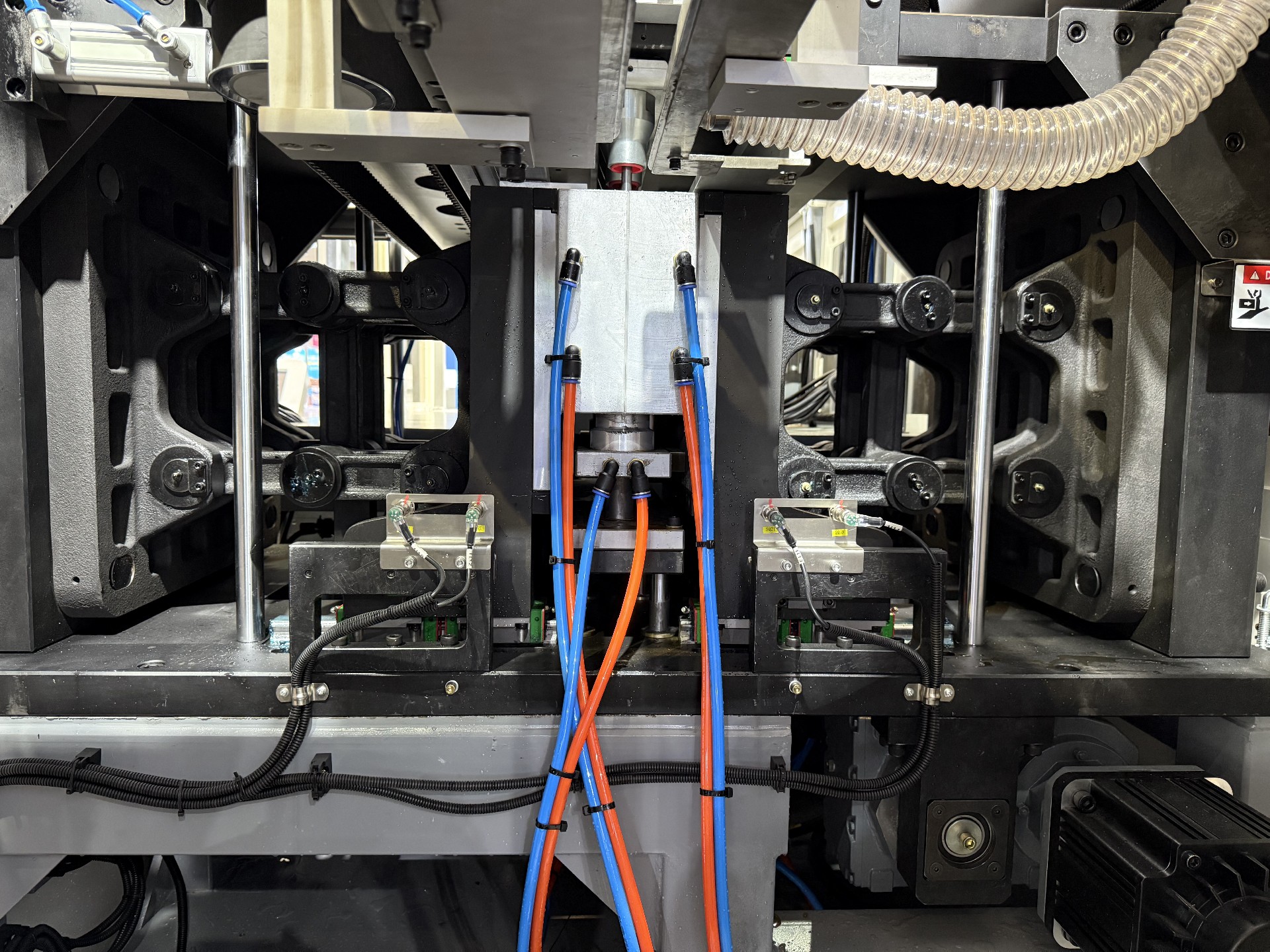

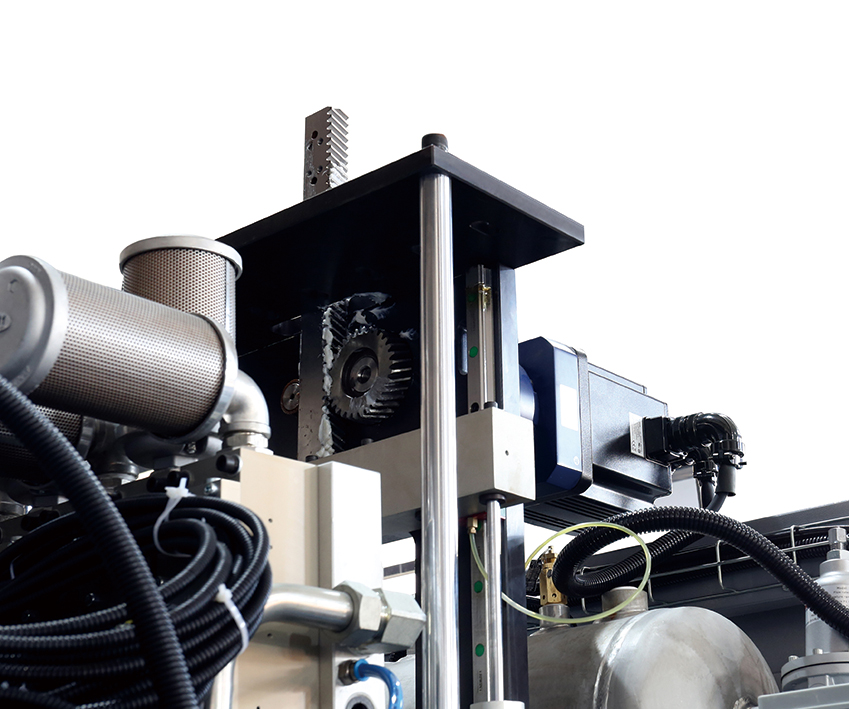

1）Servo motor clamping system with synchronized base blow mould for fast response operation；
2）Precision electromagnetic blowing valve group for fast and high productivity；
3）Double side toggle clamping structure driven by servo motor, a reliable fast clamping system. Less maintenance required

5. Controlling

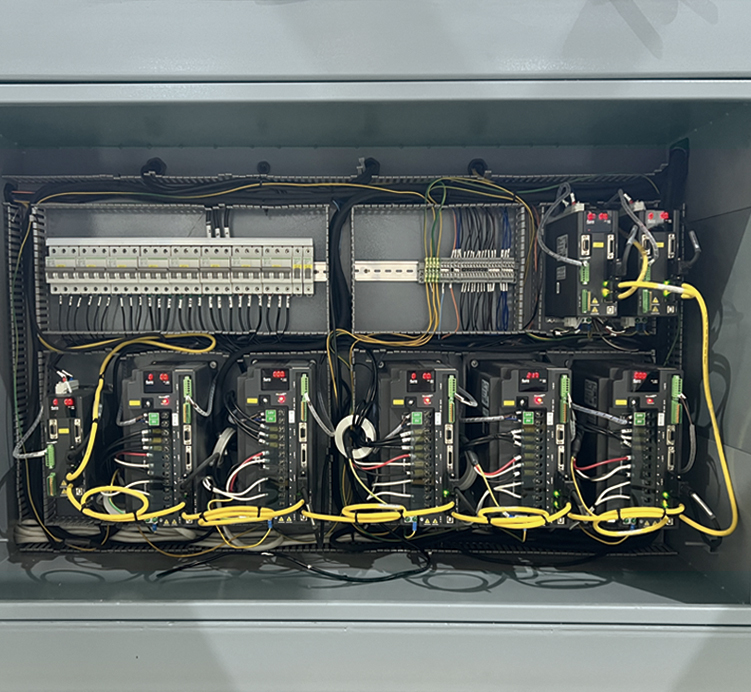

Motion PLC controlling system with 9 inch touch screen for simple and stable operation.

6. Others
1）Simplified construction, quick mould change design；
2）Low power and air consumption, longer life-span and lower wear, more clean structure.
3）Be able to be connected directly to air conveyor to bottling production line easily.


Machine Details

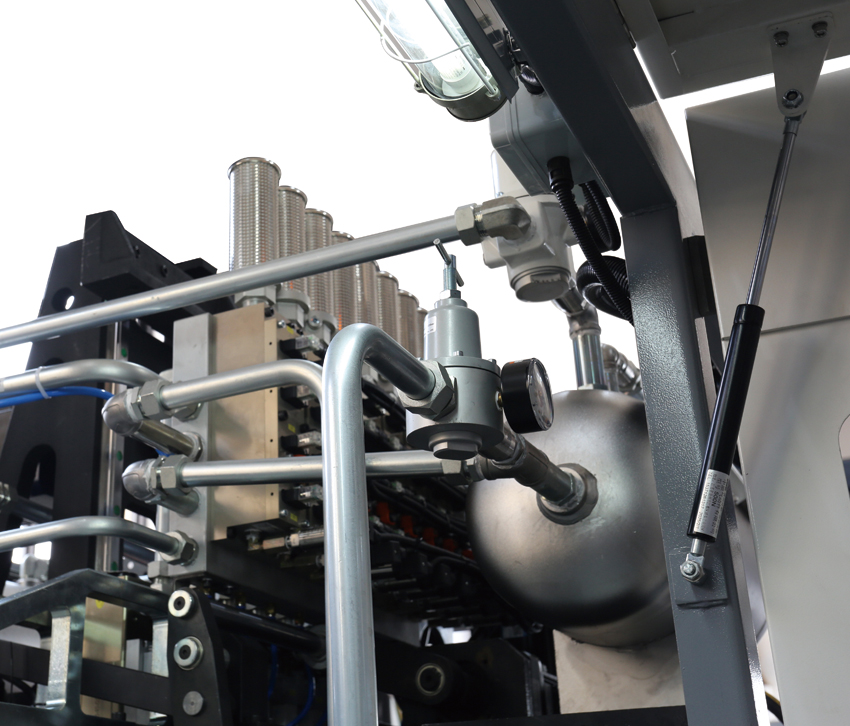

High Efficient Heating & Advanced Pitch Changing Design: Minimized small heating pitch,  change to cavity pitch Advantage:Energy saving for heating		High Pressure Blowing Valve group Brand: SEITZ, Original:Swizerland Functions including: 1.Pre-blow 2.High pressure blowing 3.Blowing exhaust 4.Air recycle		Quick Mold Changing Device Design: Standard with same mold height and thickness. Advantage: Less mold adjustment required, fast changing

MAX series machine models:

1. The output is based on 500ml 12grams water bottle.

2. Technical date is available upon inquiry.

Blow Mould

Cooperative Suppliers

Auxiliary Equipments

Air Compressor		Air Tank		Air Treatment Equipment        (Dry Chiller And Filters)
Blow Mould		Air Cooled Water Chiller
